Home / Modding Guide / Attach a Debugger to Timberborn

This guide can be done totally thanks to normanr. All credits go to him. I just made a few changes to make it easier to follow. Parts of this guide is from dnSpy’s guide and Let’s Play with Fire Wiki.

This short guide will show you how to attach a debugger to Timberborn and debug the game code or your mods using DnSpy and Visual Studio.

• With dnSpy, you can debug the game code using the game’s assemblies (DLLs) or ripped assemblies from AssetRipper.
• With Visual Studio, you can debug your mod code.

Installation guide

1. Determine and install the Unity version the game is using:

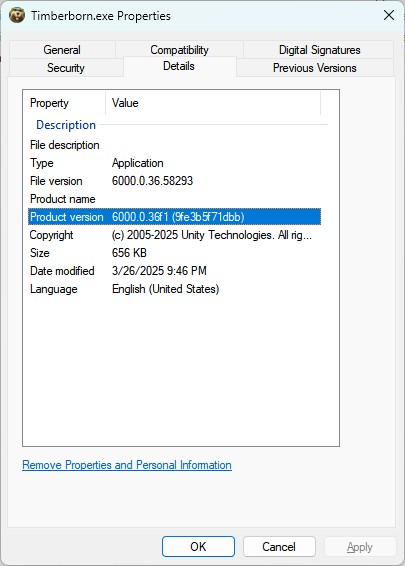

   • Right click on the Timberborn executable and select Properties. Go to the Details tab and look for Product version. For example at the time of writing, the version is 6000.0.36f1.
   • Go to Unity Download Archive and download the corresponding version (you don’t actually need to run it, just need some files from it).

Tip: while waiting for the download and installation, you should make a backup of your game’s folder.
I myself even create Git repository for the game folder, then create a branch called dev-build so I can easily switch between the dev build and the normal game because the Dev build does have a lot of dev UI that are not useful when you are not debugging the game.

1. Go to this folder you just installed, Unity 6000.0.36f1\Editor\Data\PlaybackEngines\windowsstandalonesupport\Variations\win64_player_development_mono:
   • Copy the content of the Data folder over to your game’s Timberborn_Data folder, overwriting everything.
   • Copy WindowsPlayer.exe + UnityPlayer.dll to your game’s folder (where Timberborn.exe is). Rename or delete the original Timberborn.exe then rename WindowsPlayer.exe to Timberborn.exe.
2. Edit Timberborn_Data\boot.config and add these two lines:

wait-for-managed-debugger=1
player-connection-debug=1

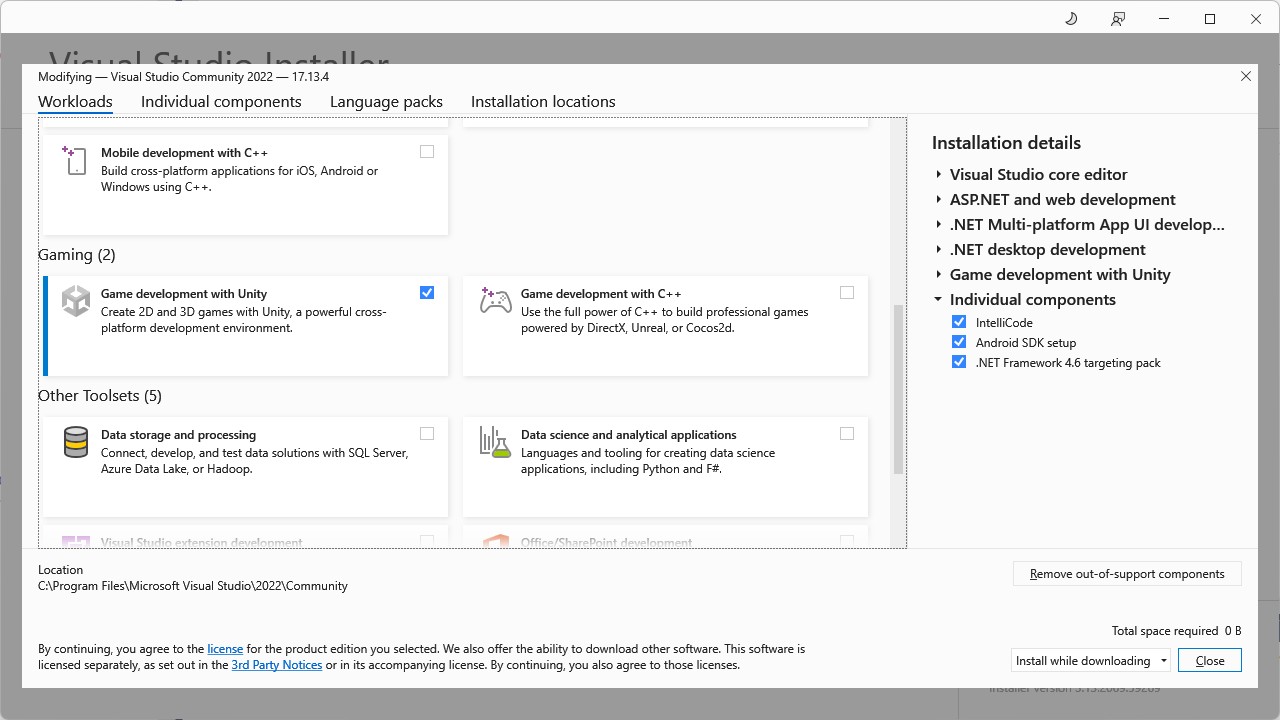

1. (Optional) If you want to use Visual Studio, make sure you have “Game development with Unity” installed. You can check this in Visual Studio Installer.

That’s it. If you use my tip above, now you can make a commit into the new branch dev-build and you can switch between the dev build and the normal game easily.

Debugging with DnSpy

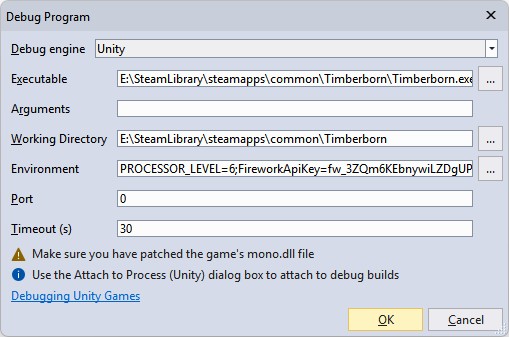

You can either use Start command or Attach to Unity command in DnSpy. Then you simply load the game’s DLLs (either directly from the game folder or from AssetRipper) and you can put breakpoints and debug the game code.

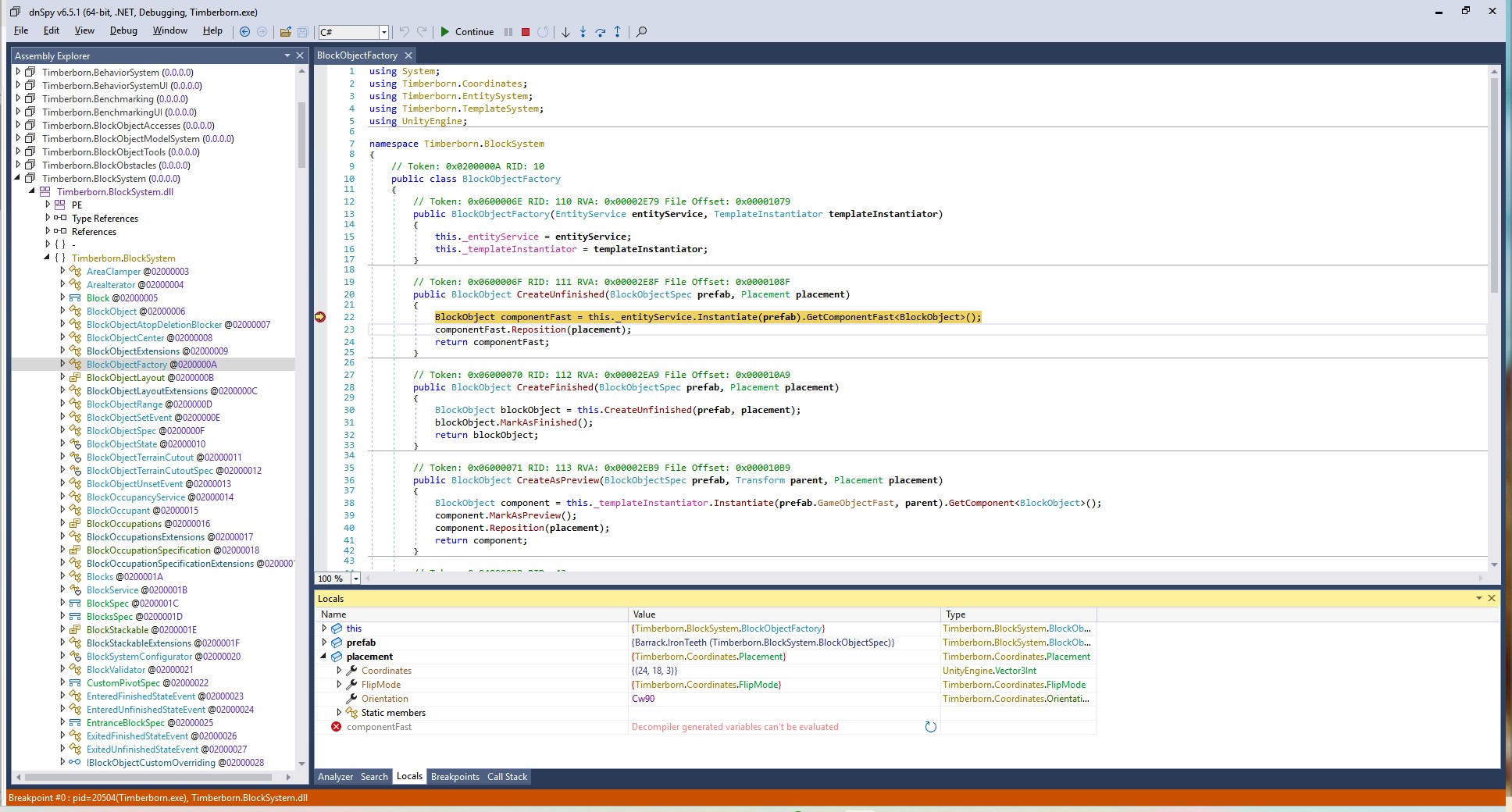

For example, I put a breakpoint at Timberborn.BlockSystem.BlockObjectFactory.CreateUnfinished for when I want to know what happens when I build a building:

Debugging with Visual Studio

Note: in order to debug your mod’s code, make sure you built your mod with embedded Debug symbols. You need this in your csproj file:

<PropertyGroup>
    <!-- Others code -->
    <DebugSymbols>true</DebugSymbols>
    <DebugType>embedded</DebugType>
</PropertyGroup>

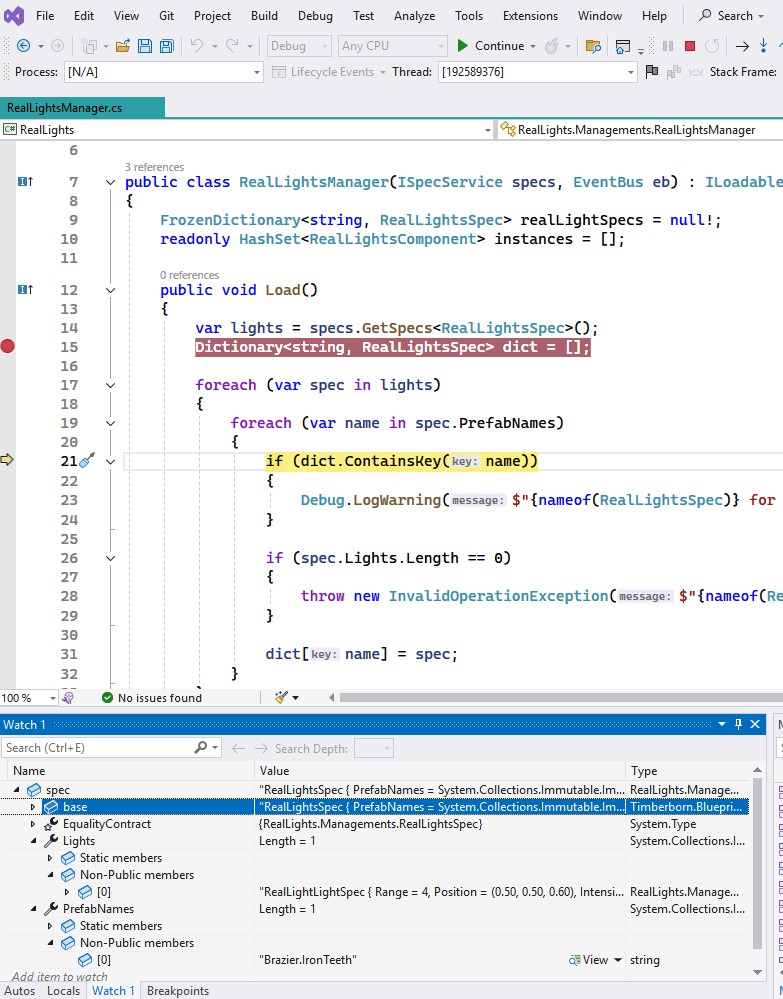

Then when the game run, you can click Debug > Attach Unity Debugger in Visual Studio and select the Timberborn.exe process. You can put breakpoints in your mod’s code and debug it like a normal C# project.

---
